Machining centre

Details

Controls:

HEIDENHAIN iTNC 530

BASIC DESIGN:

.

- basic design : gantry type :

.

WORKING RANGE -MILLING-:

.

- x-axis traverse:

8000 mm

- y-axis traverse:

3500 mm

- z-axis traverse:

2500 mm

TABLE:

.

- clamping surface (left-right):

3000 mm

- clamping surface (front-back):

9950 mm

WORKING SPINDLE / HEAD:

.

- spindle type : Fork head :

.

- tilting range:

220 °

- - mode of operation : automatic :

.

- tilting range (2nd axis):

360 °

- - mode of operation : automatic :

.

- spindle revolutions (max):

25000 /min

- taper fixture : HSK A63 :

.

- drive power (max):

45 kW

AXIS DRIVES:

.

- traverse velocity x (max):

60000 mm/min

- traverse velocity y (max):

60000 mm/min

- traverse velocity z (max):

60000 mm/min

TOOL MAGAZINE:

.

- number of positions:

50

- tool diameter max.:

125 mm

- tool length max.:

300 mm

- tool weight max.:

8 kg

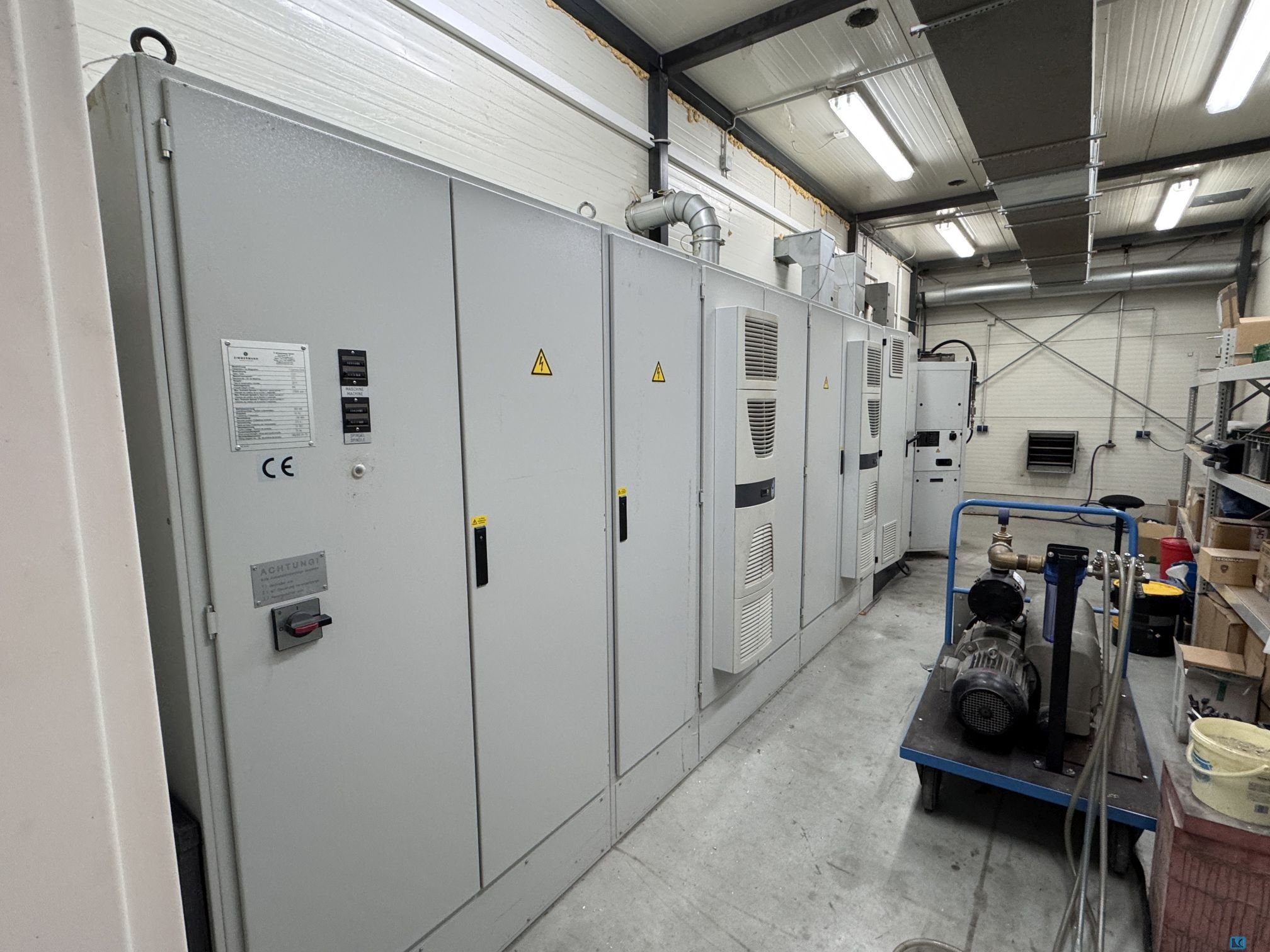

ELECTRICAL SPECIFICATIONS:

.

- mains voltage:

400 V

- mains frequency:

50 Hz

ATTACHMENTS:

.

- guideway covers : yes :

.

- coolant unit : yes :

.

- high pressure cooling syst. (through spindle) : yes :

.

- closed cabin : yes :

.

- workpiece sensor : yes :

.

- chip conveyor : yes :

.

- hydraulic system : yes :

.

- central lubrication system : yes :

.

Description

Technical description :

Milling head = fork type VH20, swiveling axis A±110°, turning axis C ±360°, high frequency spindle SIEMENS WEISS watercooled, max. spindle rpm 25.000 1/min, spindle power max. 45 kW, vibration sensor, dynamic colission warning, infrared measuring Renishaw RMP 60, toolsetter BLUM Control NT-Micro, machine hours 84.951 , spindle change in 2024 / 1477, 50 fold tool magazine, taper HSK 63, chip conveyor, cooling unit.
Max. table load 5000 kg / square meter , T-slots 18mm, T-slot distance 250mm.


Description of condition :

Video link:

https://youtube.com/shorts/EwZPVBQMSa4?feature=share
