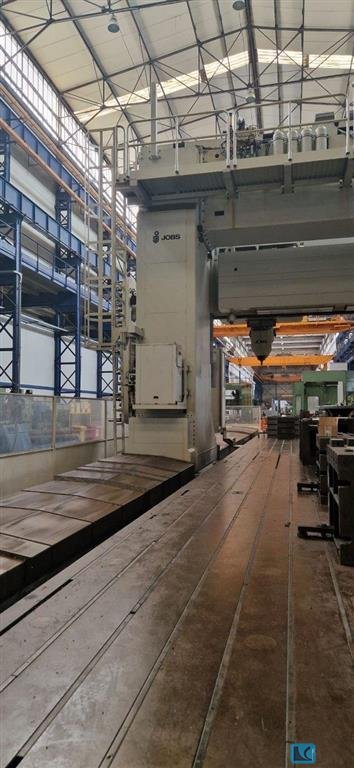

Double Column Milling M/C - Gantry Type
JOBS Joma X 265 W
- Stock number:
- 1034-13838
- Year / Condition:
- 2016 / used
- Control unit:
- CNC (SIEMENS 840 DSL)
- Country of origin:
- Italy
- Freight basis:
- ex site
- Item location:
- ex site
- Delivery time:
- immediately
Picture / documents / videos
Technical specs
Details
- x-travel:
- 28000 mm
- y-travel:
- 6500 mm
- z-travel:
- 1500 mm
- w-axis:
- 2000 Querbalken mm
- c-axis:
- +/- 200 °
- A-Achse +/- 110
- surface area:
- 25 x 5 x 0,3 mm
- distance spindle /table:
- 3900 mm
- distance between columns:
- 6000 mm
- no. of tools in the magazine:
- 60 Stück
- spindle taper::
- HSK 100
- spindle motor:
- 42/53 kW
- rapid traverse::
- 28000 mm/min
- total power requirement:
- 110 kW
- weight of the machine ca.:
- 185 t
Description
Machine equiped with SIEMENS 840 D SL CNC control for 5 axis simultanous

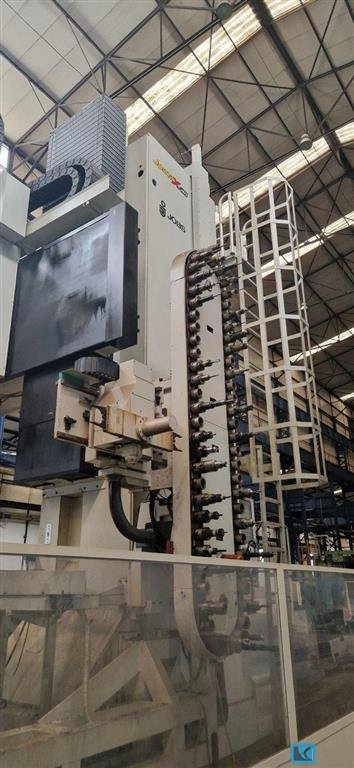

- tool changer for 60 tools
- head changer for 3 heads:

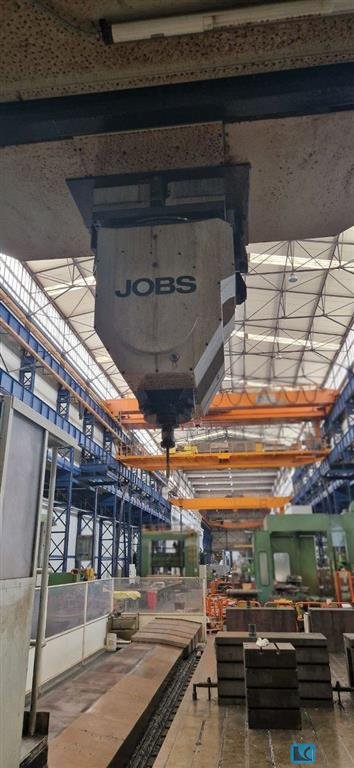

2 axis NC head BUSS T6K-P, HSK 100, 42/53 kW, 3000 r/min, 1680 Nm
1 axis angular milling head 90° BUSS, HSK 100, 30/37 kW, 2800 r/min, 1178 Nm
1 vertical milling head BUS, HSK 100 45/56 kW, 4000 r/min, 1783 Nm
- Pendulum operation
- BLUM tool presetter
- M&H workpiece measuring system
- coolant through spindle

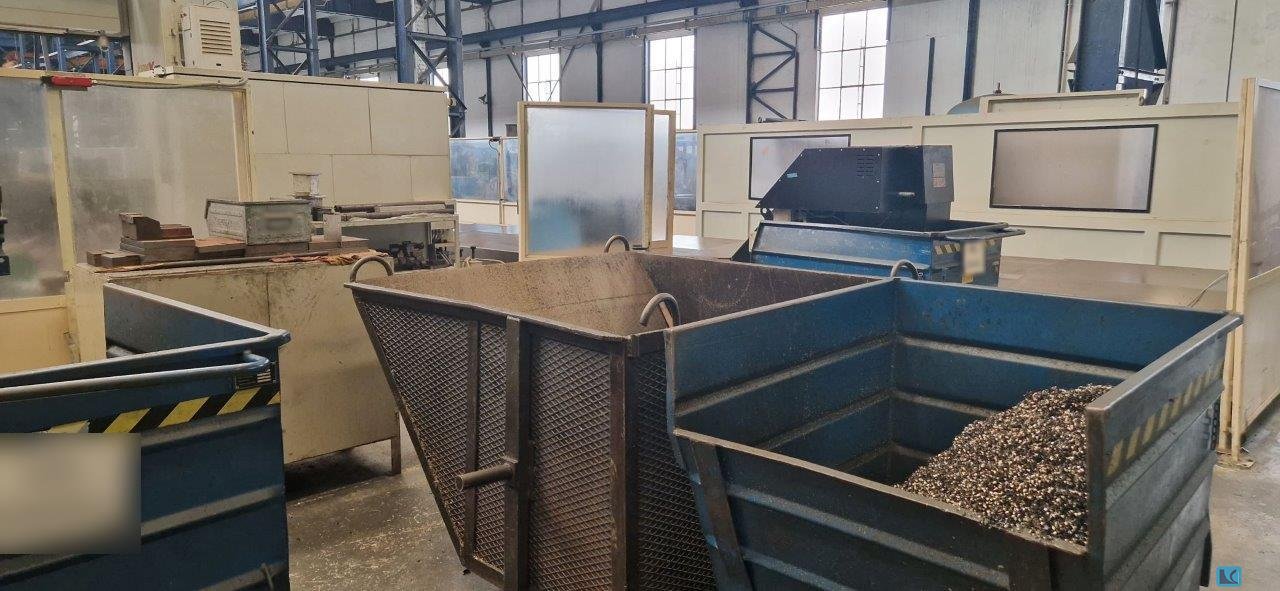

- 2 chip conveyors, coolant device
