Ram-Type Floor Boring and Milling M/C

Details

spindle diameter:

150 mm

x-travel:

10000 mm

y-travel:

2500 mm

bore spindle stroke:

700 mm

ram stroke:

700

dimension of the ram:

340 x 340 mm

spindle taper ISO:

50

Speed of boring spindles:

1,25 - 1250 U/min.

feed speeds infinitely variable:

1 - 5000 mm/min

rapid traverse:

5 m/min

total power requirement:

120 kW

weight of the machine ca.:

115 t

dimensions of the machine ca.:

15,1 x 10 x 6,4 m

Description

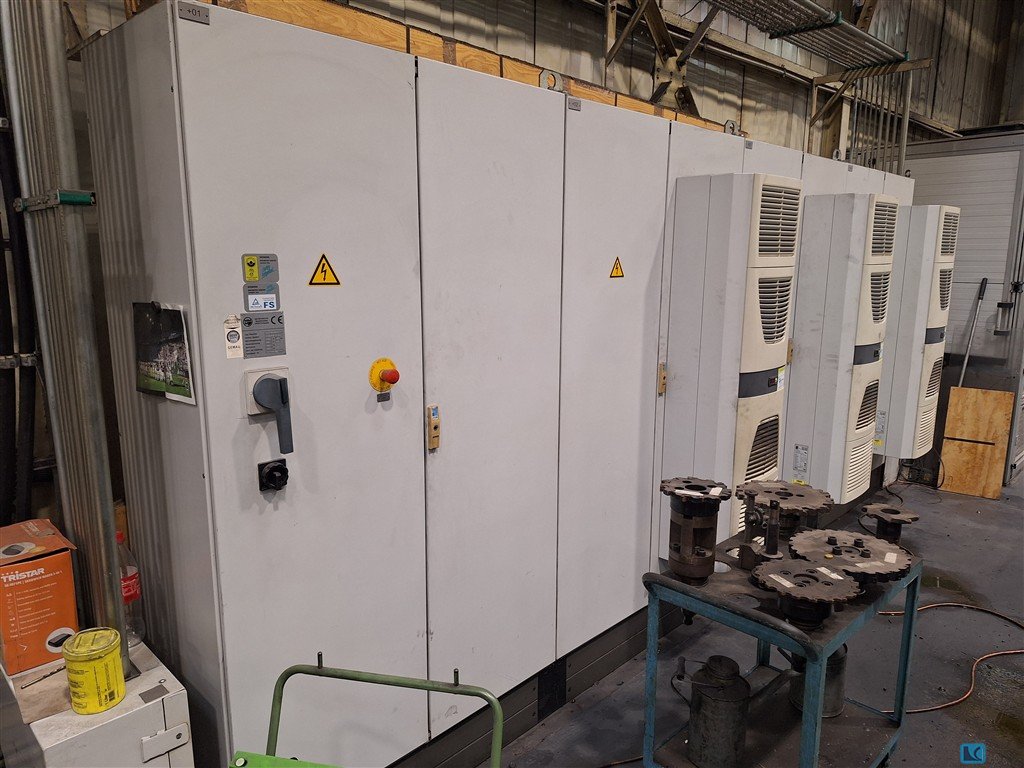

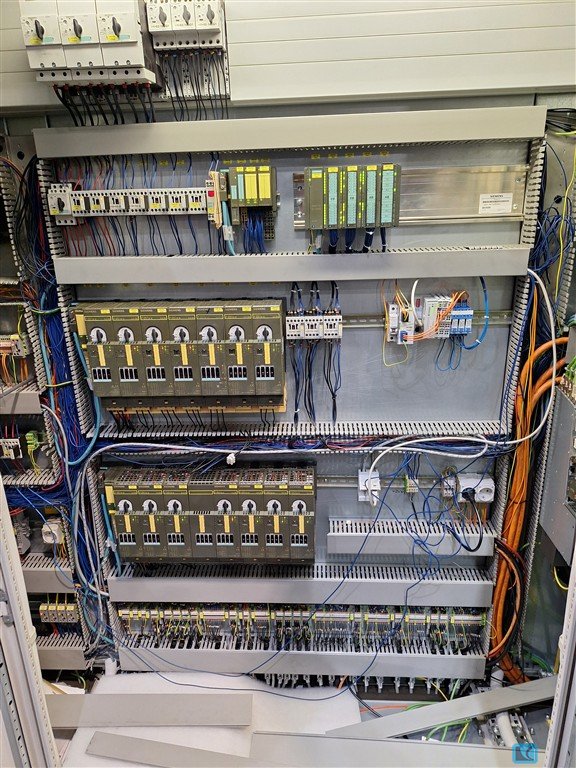

with CNC SIEMENS 840 Dsl complete retrofit in 2010
FIBRO CNC rotary table 2500 x 2500 mm, 50 to. loading capacity,
longitudinal movement 2500 mm,
angular milling head 4 x 90°
universal milling head
floor plate area ca. 12000 x 6000 mm ( 72 m²)
chip conveyor and coolant attachment
aerostatic guideways
