Other accessories for machine tools - Coolant Unit - Bürener BMF KA 1300 I

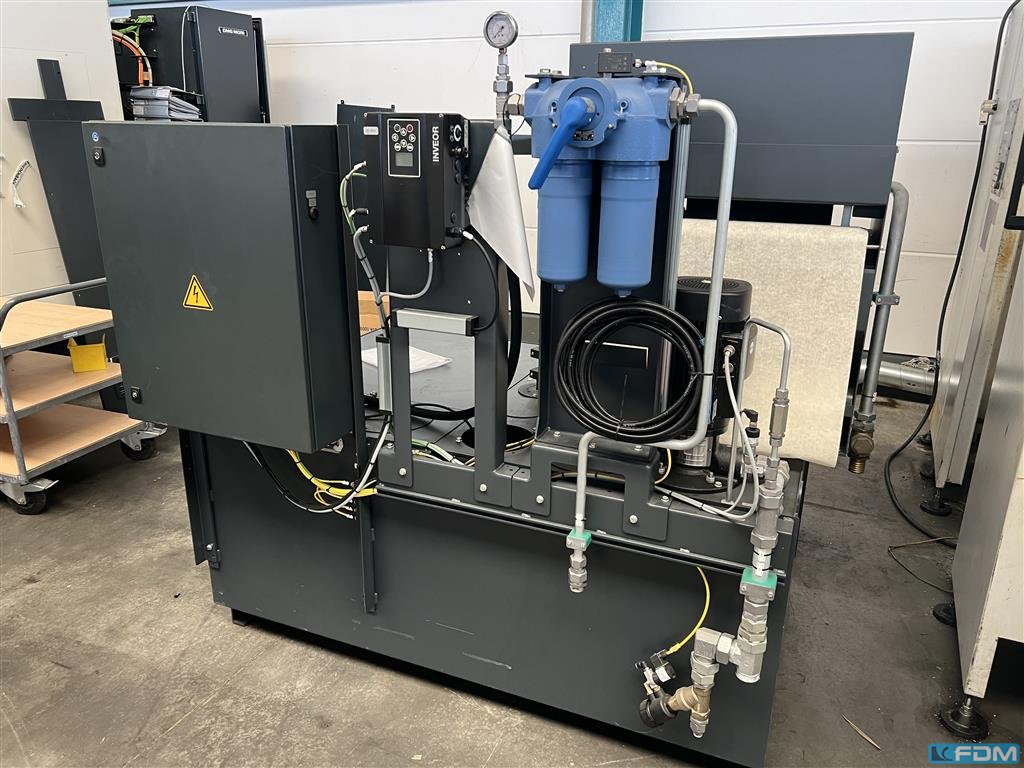

Coolant Unit

Bürener BMF KA 1300 I

Stock number:
1032-03956
Year / Condition:
2015
Control unit:
conventional
Country of origin:
Germany
Freight basis:
ex stock, free loaded
Item location:
Karlsbad Ittersbach stock 1
Delivery time:
immediately

Picture / documents / videos

Technical specs

Details

liter capacity:
25 l/min
Pressure of coolant:
80 bar
rated current:
13 A
Clean water tank capacity:
1300 l
total power requirement:
14 kW
weight of the machine ca.:
680 Kg
dimensions of the machine ca.:
2,0 x 1,1 x 1,8 m

Description

We are importers for FRASCARA high pressure coolant systems
Frascara delivers compact, mobile and reliable high pressure coolant / filtering systems with 50 or 70 bar 21 l/min.
We can provide up to 3 pressure levels controlled by M-Functions.
Oil operated systems are available also.

Areas of application:
Cleaning of coolant lubricants, emulsions and cutting oils without filter residues. Installation on machine tools for individual machines

Function:
The lifting pump inside the machine tank with minimum 2bar / 20 l/min capacity presses the contaminated water through the twin filter unit into the clean water tank. of the Frascara unit, from where it is pumped back through the spindle by a 50 bar pump.
When the filters are getting clogged, an alarm is triggered and the operator switches to the second filter bank. The first set of filters then can be cleaned while the system is in full operation. The filters are made of wire mesh and can be reused.
The system is very quiet and extremely reliable!
