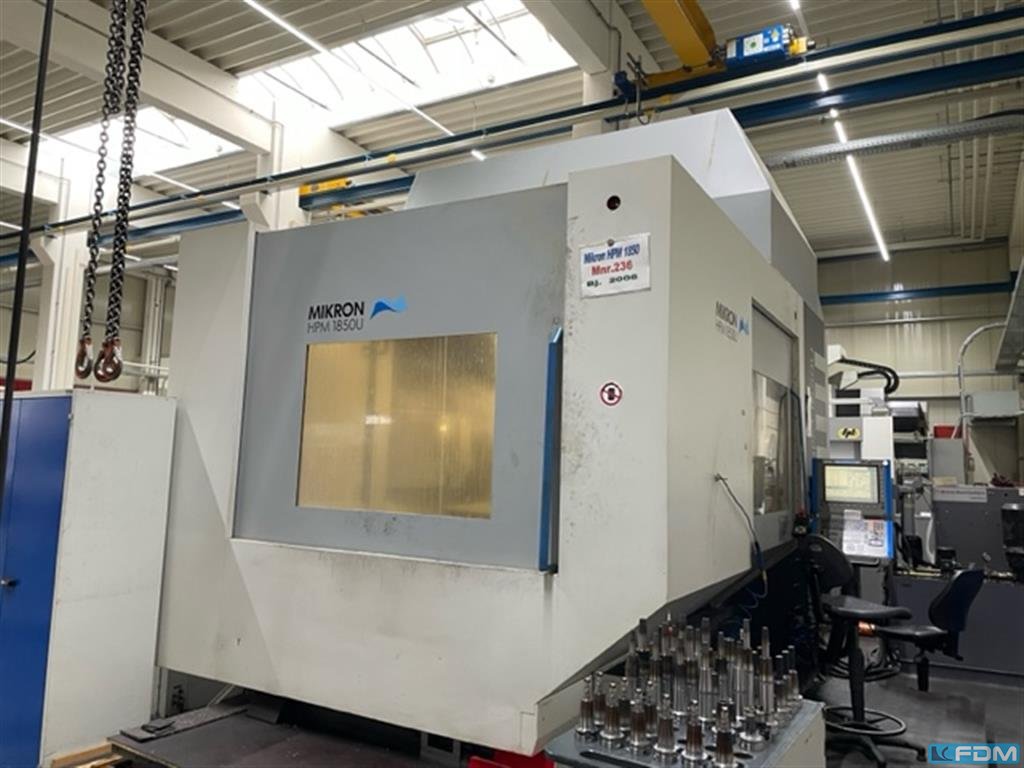

Boring mills / Machining Centers / Drilling machines - Machining Center - Universal - MIKRON HPM 1850 U

Machining Center - Universal

MIKRON HPM 1850 U

Stock number:
1032-03941
Year / Condition:
2006
Control unit:
CNC (HEIDENHAIN iTNC 530)
Country of origin:
Switzerland
Freight basis:
ex works
Item location:
Karlsbad Ittersbach stock 1
Delivery time:
September 2024

Picture / documents / videos

Technical specs

Details

x-travel:
1850 mm
y-travel:
1400 mm
z-travel:
720 mm
rotary table::
D 1600 mm
table load:
4000 kg
spindle turning speed range:
15.000 1/min
control:
HEIDENHAIN iTNC 530
Tool changer:
45 Pos.
spindle taper ISO:
HSK A-63
weight of the machine ca.:
24,5 t
total power requirement:
89 kW

Additional information

dimensions for transport

Description

5-axis simultaneously universal-machining center,
NC-rotary-table (C-axis 360° ),
NC-controlled milling head (A-axis +120° / -20°),
internal coolant supply,
infrared touchprobe RMP 60,
oilmist extractor,
el. handwheel,
chipconveyor,
laser measuring system,
thermal compensation Z,

approx. 25.000 h "machine on" , approx. 7.000 h "spindle on"
