Machining Center - Vertical

Details

x-travel:

1.500 mm

y-travel:

700 mm

z-travel:

610 mm

control:

HEIDENHAIN iTNC 530

table-size:

1.400 x 700 mm

tool taper:

SK 40

numbers of positions in the tool changer:

48 fach

spindle turning speed - stepless:

15000 1/min

rapid traverse:

36 m/min

table load capacity:

700 kg

spindle drive:

25 kW

total power requirement:

30 kVA

weight of the machine ca.:

9,1 t

dimensions of the machine ca.:

3,7 x 2,65 x 2,9 m

Description

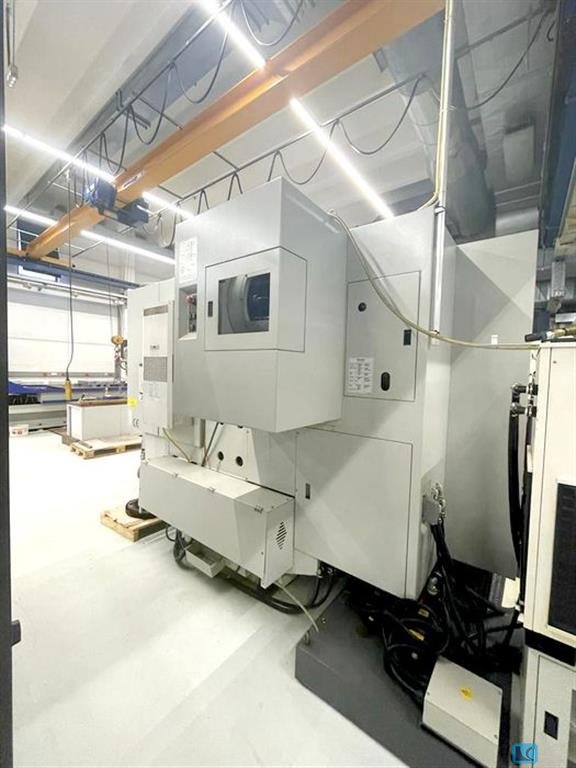

vertical machining center,
20 bar internal coolant supply with paper filter,
3D-touchprobe,
chipconveyor,
el. handwheel

meter readings:
approx. 43.600 h "machine on", approx. 20.000 h "spindle on",
