continuous oven

Details

max. temperature:

1120 Grad

Working width of the conveyor belt::

600 mm

Usable height::

250 mm

Heating length::

6350 mm

Heating power::

396 KW

Number of heating zones::

4

Belt speed max .: :

1050 mm/min

Belt speed min .::

100 mm/min

Cooling zone::

3000 mm

Description

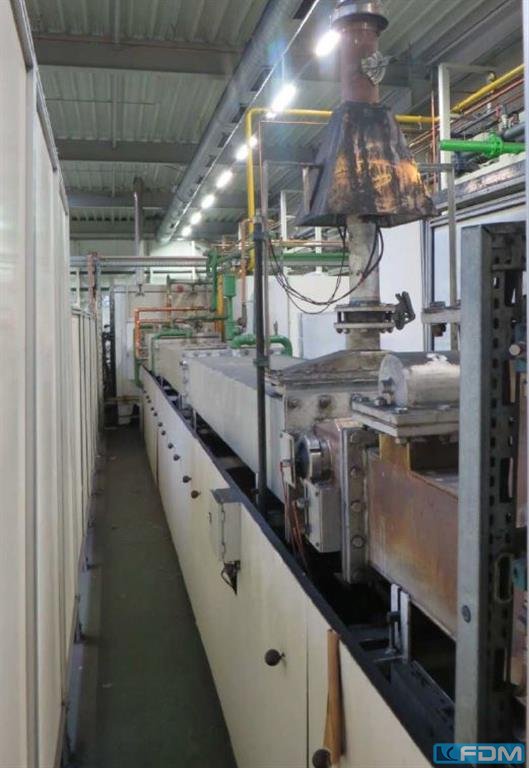

Conveyor oven / continuous oven
Complete system
Especially suitable for brazing, tempering and much more

Manufacturer MWU - Germany
Type VKD 6500 e
Serial No. 010177-5
Year 1995

Accessories / special equipment
Task and removal table
Fast cooling / cooling section
Doors isolated
ceramic curtain
nozzle assemblies
flaring
Cooling water station with heat exchanger
MSR plant
Exogas protective gas plant

1.1.1. oven

Type VKD 6500e
Serial number 010177-5
Max. Working temperature Heating length 1120 ° C
Number of heating zones 4
Usable width of the transport belt 600 mm
Working height 250 mm
Max. Speed ??1050 mm / min
Min. Speed ??Heating capacity 100 mm / min
Protective gas nitrogen, exogas (Prosengas
Type of lining: FL / Moler stones / Ceramic fiber mats
Chamois and SIC plates

Total furnace length 7700 mm

1.1.2 Switchgear

Dimensions:
Length4200 mm
Depth 600 mm
Height 2200 mm
Voltage 3 X 400 V
Connection 630 A at 3 X 400 V 50 Hz
Frequency Control voltage 24 V DC
Temperature control 4 X Thyristor (phase cut), PLC
Overtemperature regulator 4 X West mini 6700
Scale digital
Thermocouple PtRh - Pt
Safety controller West mini 6700

Band speed adjustable 0 to 1 m / min
Continuous brewing power 1500 Kg / h for components 20x20x60
Throughput capacity 500 Kg / h

Dimensions
Oven 7700 mm
Feeding station 3132 mm
Cooling distance 12200 mm
Plant width 1800 mm
Switchgear 2400 mm
Cooling system 1500 x 800 mm
Exogas protective gas generator station 3500 x 3400 mm
