Boring mills / Machining Centers / Drilling machines - Ram-Type Floor Boring and Milling M/C - TITAN (PAMA) AFP 200

Ram-Type Floor Boring and Milling M/C

TITAN (PAMA) AFP 200

Stock number:
1007-6436
Year / Condition:
2010 compl. rebuilt
Control unit:
CNC
Country of origin:
Romania
Freight basis:
ex Warehouse
Item location:
D-40721 Hilden NRW
Delivery time:
immediately ex warehouse

Picture / documents / videos

Technical specs

Details

spindle diameter:
203,2 mm
x-travel:
9000 mm
y-travel:
4000 mm
milling spindle diameter:
335 mm
spindle taper ISO:
60
spindle turning speed - stepless:
1 - 350 / 5 - 1200 U/min
w-axis:
800 mm
z-axis:
1200 mm
z + w axis:
2000  mm
rapid traverse X-axis:
8000 m/min
rapid motion - y-axis:
6000 mm/min
Rapid motion z/w:
4000 mm/Min.
Feed column (X-axis):
1 - 8000 mm/min.
Feed head stock (Y-axis):
1 - 6000 mm/min.
Infeed z/w:
1 - 4000 mm/Min.

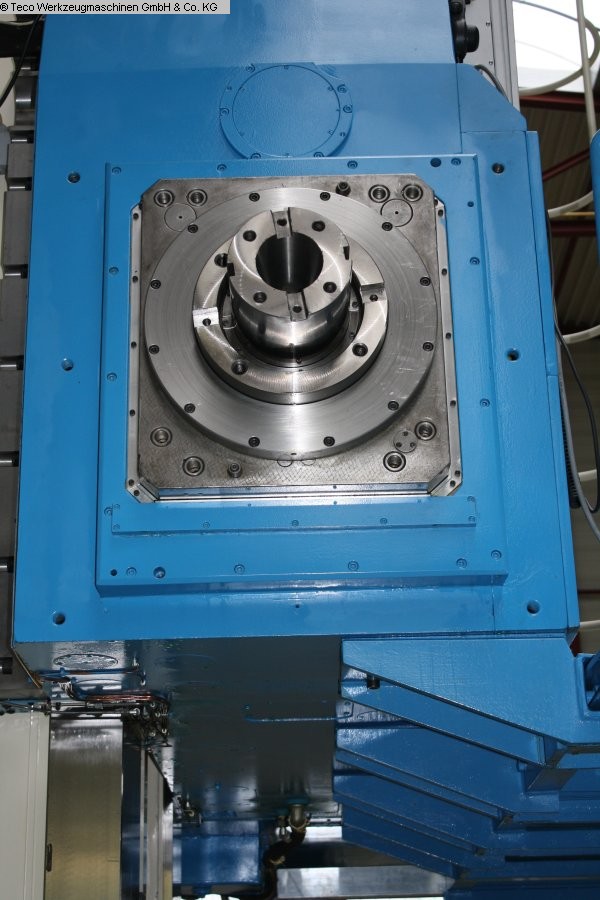

dimension of the ram:
530 x 600 mm
engine output:
75 kW
dimensions:
16 x 5,5 x 8,1 m
total power requirement:
165 (Spitze: 215) kW
weight of the machine ca.:
130 t

Accerories

Hydrostatic guideways in X-, Y- and W-axes

Telescopic cover for bed (X-axis)

Cumulated Z- and W-axes

Levelling shoes

Platform (Y-axis)


Description

The horizontal boring and milling machine is equipped with ram and travelling column.
It is geometrically rebuilt, and equipped with latest Siemens Sinumerik 840 D control - up to 8 axes - as option.
The AFP 200 is a robust boring mill of high stability. It offers a wide range of applications.
The machine is preferably designed for milling, drilling and turning operations of large work pieces made from cast iron, steel, or other materials, both in roughing and finishing. The operations could be extended by different accessories.
Hydrostatic guides of X-, Y- and W-axes guarantee highest accuracies and long life time.


CE-certified
Partially overhauled according to ISO 3070-3
