Sachet filler
Bosch/Höller BMR 200
- Stock number:
- 1300-02-0675
- Year / Condition:
- 1988/2010 / Gebraucht
- Control unit:
- PLC (Siemens)
- Country of origin:
- Germany
- Freight basis:
- ex works, free on truck
- Item location:
- DE-Stapelfeld
- Delivery time:
- Upon agreement
Picture / documents / videos
Technical specs
Description

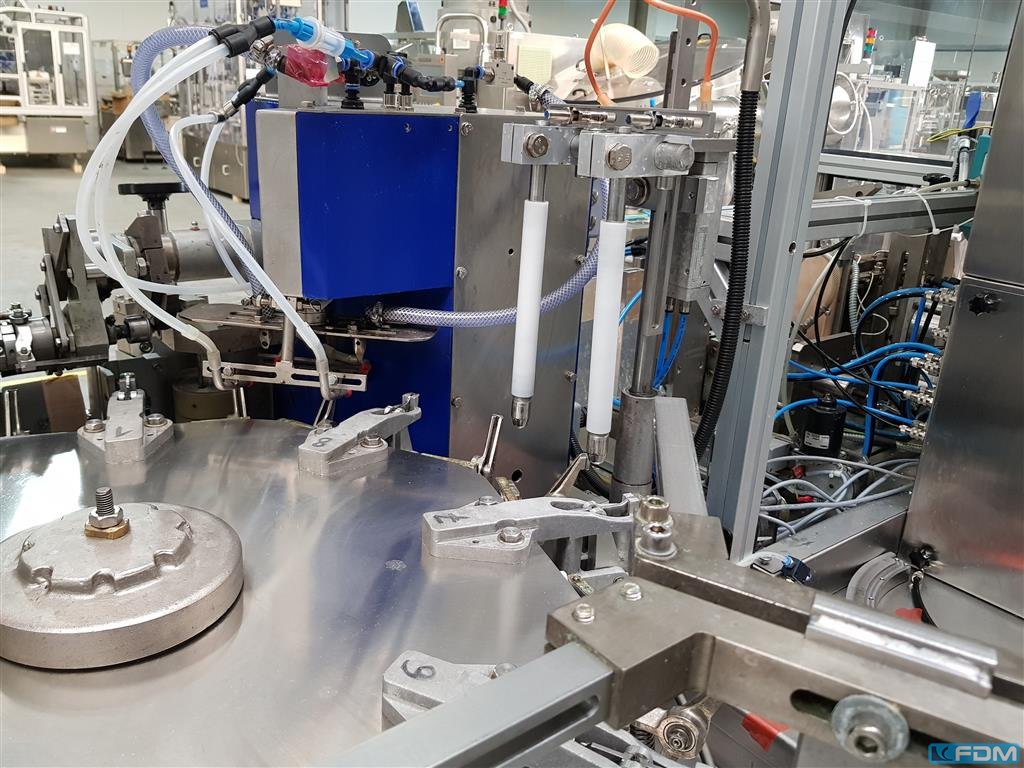

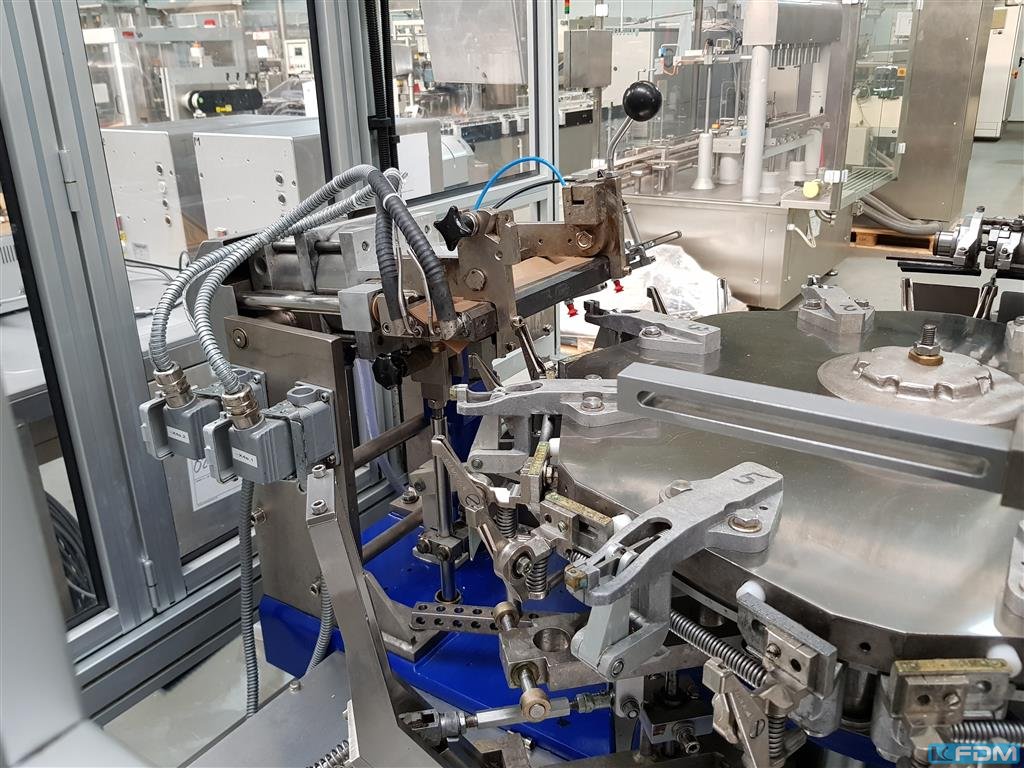

Horinzontal running fully automatic 3-edge and 4-edge sealing bag (sachet) machine for filling/sealing of liquid/creamy products in simplex/duplex operation:
• Formate range simplex (width x height) min. 120 x 60 mm, max. 220 x 180 mm
• Formate range duplex (width x height) min. 60 x 60 mm, max. 110 x 180 mm
• Output 25 - 80 cycles/min
• Dosing station (pump carriage) for liquids/cremes with 2 Flexicon peristaltic pumps PD12l with control unit MC12, filling range 0,2 - 250 ml, mobile
• Several filling needles with anti-drip protection available
• Electrical discharge by ion blower nozzle
• Longitudinal and cross seam hot sealing tool, head seam hot sealing tool
• Bag inflation device, bag vent
• Peel seam device for 2-component bags
• Longitudinal and cross perforation
• Punch for hanging hole
• Tear notch device
• Embossing device
• Cross cutting device
• Print mark control
• Bag sucking remove
• Stations adjustable by servodrive on fine thread spindle
• Product parts made of s/s 1.4301 (AISI 304)
• Housing over entire operation area with lifting cylinders, manually liftable
• PLC Siemens S7-200 mit Simatec panel
• 2010 mechanically and electrically reconditioned by Klocke-Verpackungstechnik, last calibration 11/2019
• 6,465 operating hours since reconditioning
• Electrical connection 400V/50Hz
