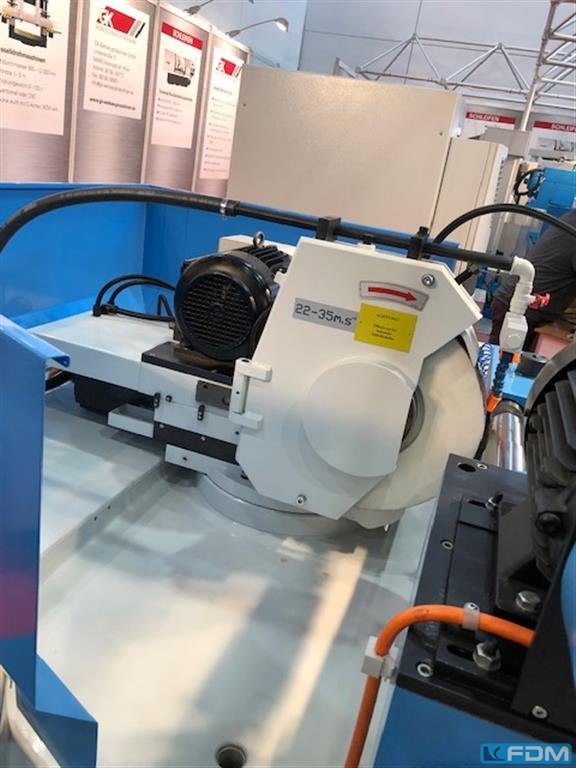

Grinding machines - Cylindrical Grinding Machine - Universal - KRAFT URS 1000 NC

Cylindrical Grinding Machine - Universal

KRAFT URS 1000 NC

Stock number:
1124-0002047
Year / Condition:
2022 / New
Control unit:
NC (Siemens S7 PLC)
Country of origin:
Germany
Freight basis:

Item location:
Germany - 64589 Stockstadt
Delivery time:


Picture / documents / videos

Technical specs

Details

grinding diameter:
260 mm
grinding length:
1000 mm
centre height:
130 mm
dimensions of grinding wheel:
400x60x127 mm
grinding wheel speeds:
1700,1900,2200 U/min
grinding head swivelling:
+/- 30 Grad
table swivelling +/-:
9 Grad
Tailstock spindle taper:
4 MK
grinding wheel motor:
4 kW
hydraulic motor:
1,5 kW
work piece motor:
0,37 kW
net weight:
2400 kg
gross weight:
2950 kg

Accerories

PLC control:
Siemens S7
Z + X axis with ball bearing spindles



stepless speed

tailstock sleeve movement:
pneumatic, via foot padel
frequency control main spindel engine


Machine semi-cover

central lubrication for the guideways

operating panel:
New Rittal operating panel with touchscreen screen from Siemens

control cabinet Siemens PLC


luminating devices

centers sleeves:
grinding wheel dresser

grinding wheel

electronic hand wheel

grinding wheel flange:
grinding wheel extractor

leveling elements

Driving dogs




Description

unused cylindrical grinding machine, manufactured by ABA type URS 400 Year, 2009

Further technical data, and standard and optional equipment, as defined in Appendix.

Payment: 100% before loading of the machine

Warranty: no
