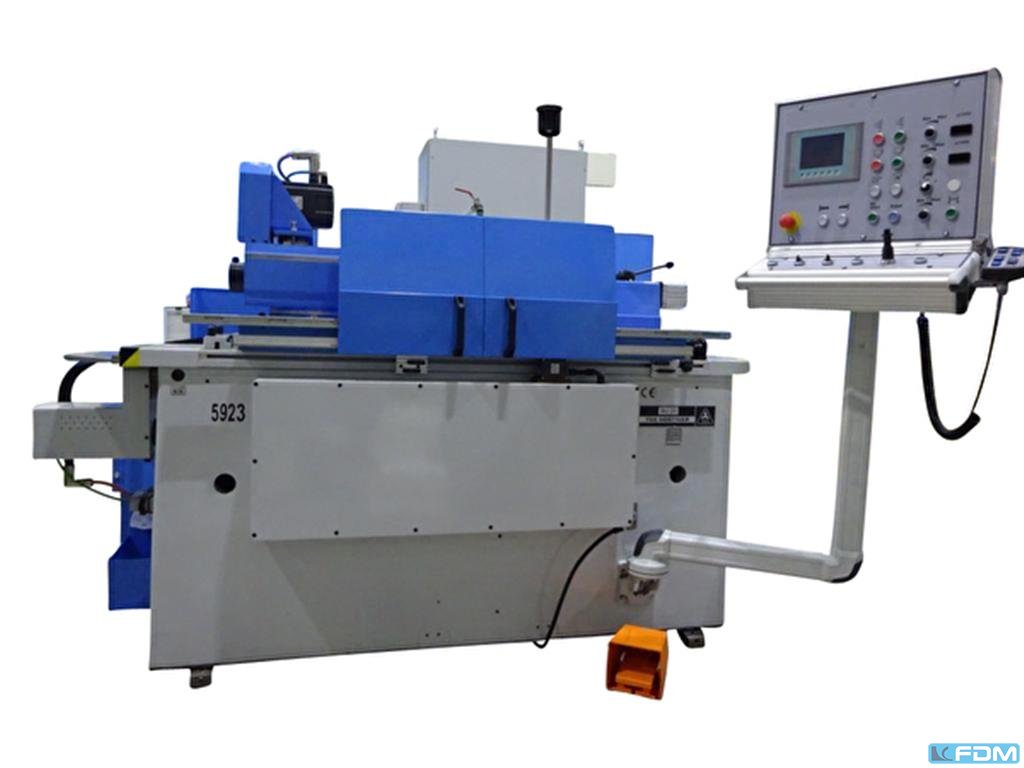

Cylindrical Grinding Machine
TOS BUA 25x630
- Stock number:
- 1124-0000168
- Year / Condition:
- Generalüberholt / Overhauled
- Control unit:
- NC (Siemens S7)
- Country of origin:
- Czech Republic
- Freight basis:
- ex stock, free on truck
- Item location:
- Czech Republic
- Delivery time:
- ca. 5-6 months
Picture / documents / videos
Technical specs
Details
- grinding diameter:
- 250 mm
- grinding length:
- 630 mm
- centre height:
- 125 mm
- control:
- Siemens S7
- swing diameter:
- 280 mm
- centre distance:
- 630 mm
- grinding head swivelling:
- 90 °
- table swivelabel +/-:
- +10/-7 °
- grinding wheel dia. x width x bore:
- 400 x 40 x 127 mm
- grinding wheel dia. according abrasion:
- 250 mm
- max. grinding wheel width:
- 63 mm
- swing in open rest:
- 70 mm
- swing in closed rest:
- 70 mm
- taper bore of workpiece spindle:
- 4 Morse
- taper of tailstock quill:
- 4 Morse
- stroke tailstock centers:
- 30 mm
- clamping force tailstock center:
- 50-1500 s
- grinding head swivellable +/-:
- +15/-45 °
- output of wheelhead motor:
- 4 kW
- work piece motor:
- 0,7
- hydraulic motor:
- 1,1 kW
- cool pump motor:
- 0,155 kW
- lubrication pump motor:
- 0,155 kW
- electro motor internal grinding:
- 0,75 kW
- total power requirement:
- 10 kVA
- weight of the machine ca.:
- 3000 kg
- dimensions of the machine ca.:
- L3000/B2300/H1600 mm
Accerories
- technical documentation
- workshop light
- ball screw in axes
- work piece drivers
- work piece driver
- grinding wheel dresser at tailstock
- splash guards
- balancing mandrel
- open tailstock dia. 5-80 mm
- centers morse 5
- grinding wheel cover for width 50 mm
- grinding wheel flange for width 25-40 mm
- grinding wheel 400 x 40 x 127 mm
- autom. dressing compensation
- stepless spindle speed:
- und Werkstückantrieb
Description

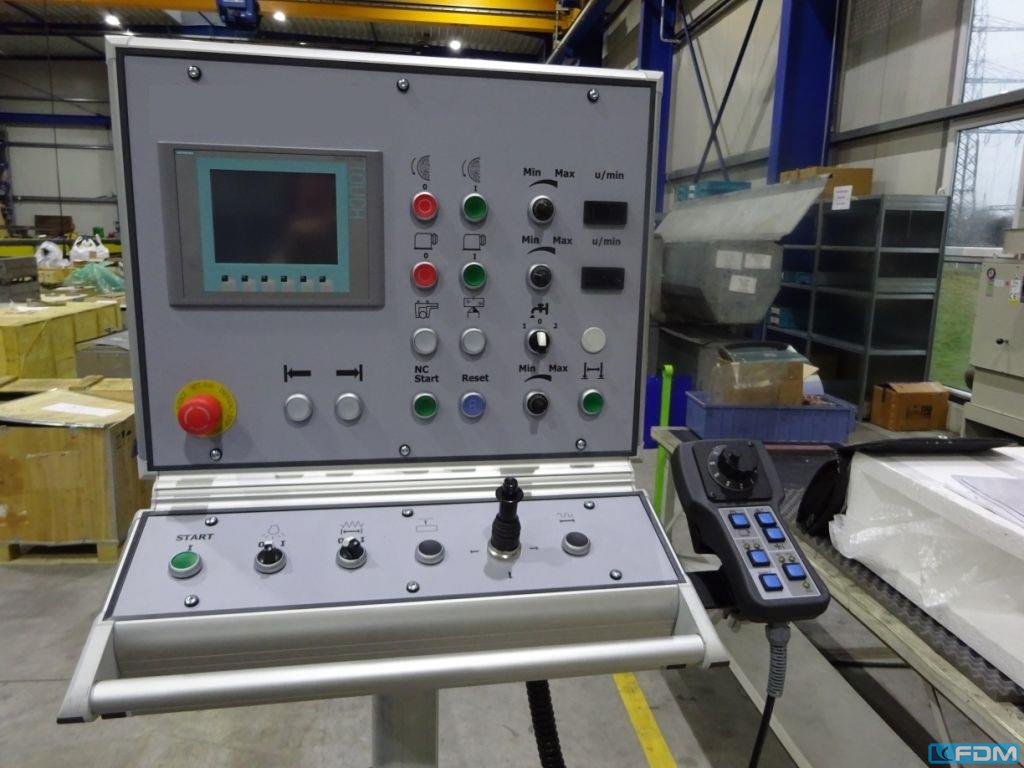

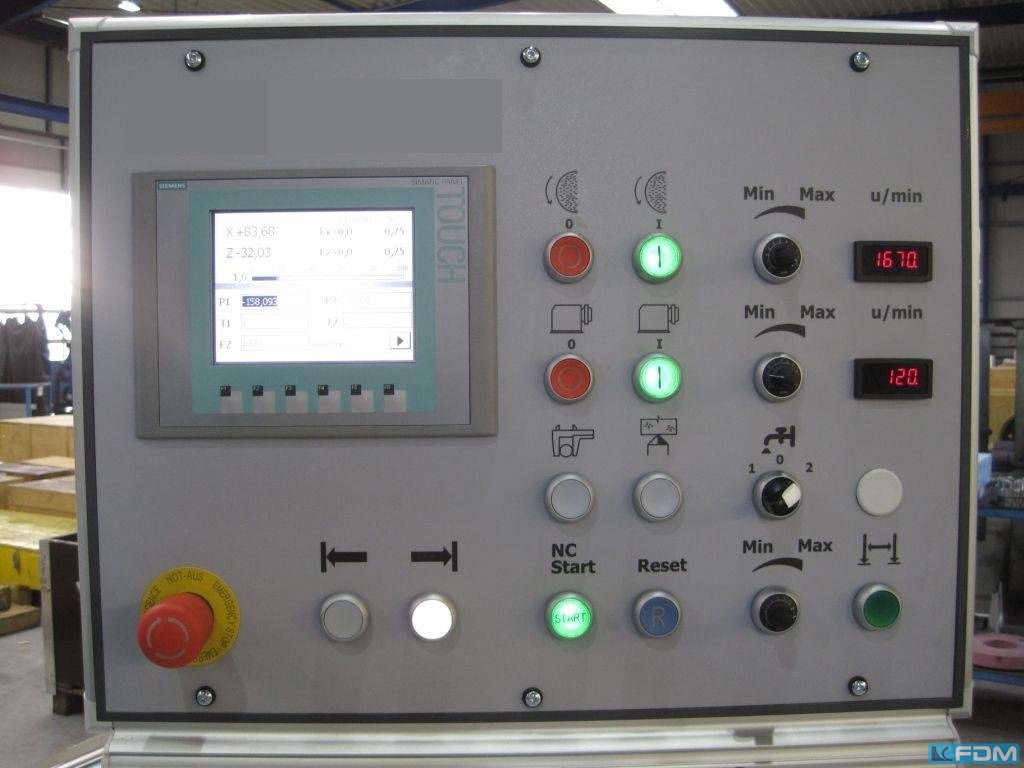

Modernized and overhauled NC circular grinding machine with new SPS control from Siemens S7, table movement and feed of the grinding wheel via ball screw spindle. Other features:
- Feed X and Z are stepless (servo motor)
- Workpiece drive and grinding spindle drive (45m / s) is also stepless (workpiece drive has servo motor and grinding motor a frequency converter)
- autom. Dressing compensation
- Sedimentation - Coolant tank (option - paper belt filter)
- Internal grinding facility optional
Machine with guaranteed new machine geometry.
Further technical data and accessories, according to the appendix.
Benefit from the favorable leasing and hire-purchase conditions of ABC Leasing. Ask us about it. Of course, you also receive from us free delivery, assembly / commissioning and ready-to-hand transfer as well as control training.
