Boring mills / Machining Centers / Drilling machines - Machining Center - Universal - UNION KC 150

Machining Center - Universal

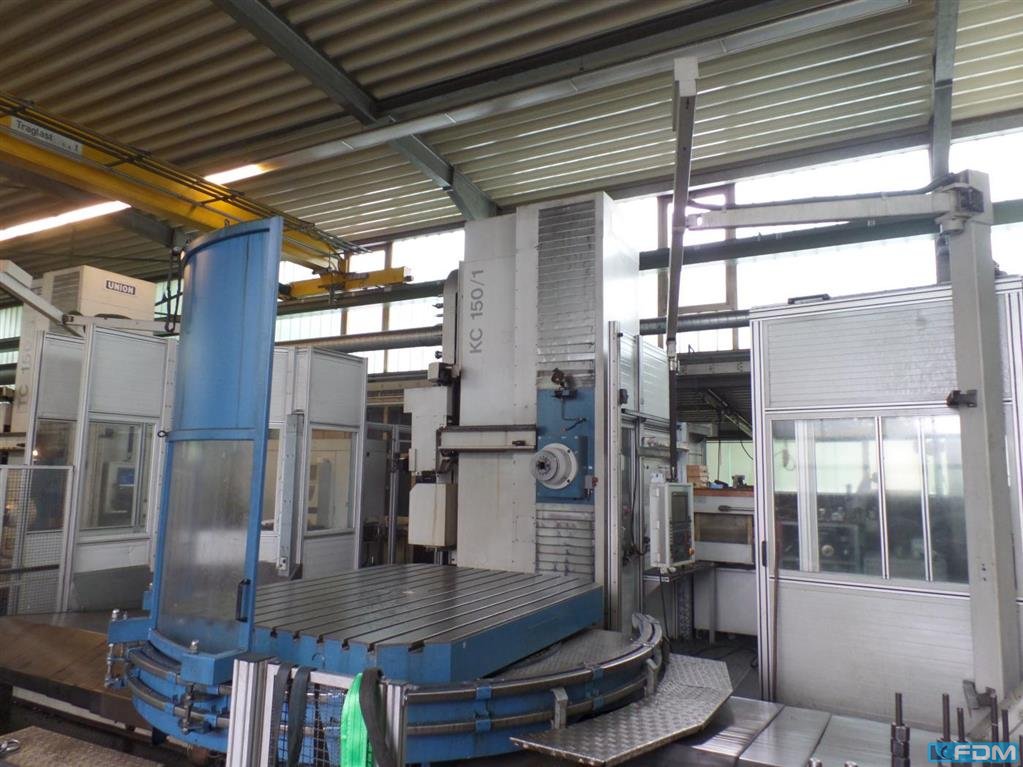

UNION KC 150

Stock number:
1118-1585
Year / Condition:
2006
Control unit:
CNC (HEIDENHAIN iTNC 530 )
Country of origin:
Germany
Freight basis:
EXW
Item location:
EXW Kleinostheim
Delivery time:
immediately

Picture / documents / videos

Technical specs

Details

x-travel:
4.000 mm
y-travel:
2.500 mm
z-travel:
1.500 mm
w-travel:
750  mm
B-Axis, rotary movement table:
360 Grad/degrees
b-axis, positioning accuracy :
360.000 x 0,001 °
workgin unit: :
spindle diameter:
150 mm
fixed spindle nosing, length:
370 mm
Fixed spindle nosing, diameter:
150 mm
shortest distance, spindle nose to mid of table:
500 mm
spindle taper (short taper acc. to DIN 69871):
ISO 50
spindle power S1 (100%) / S6 (60%):
37/46 kW
max. torque at the spindle:
2.179 Nm
Spindle speed, steppless adjustable :
5 - 3.000  min-1
NC-rotary table :
clamping surface :
2.000 x 2.500 mm
center hole in table:
100 mm H6
table load (max.150mm outside table center):
20.000 kg
width of T-slots:
128 mm
T-slot width:
160 mm
position :
360.000 x 0,001 °
Max. travel speed:
Max. Feed range for X-, Y-, Z- and W-Axis:
15.000 mm/min
Rapid traverse for all linear Axes:
15.000 mm/min
B-axis:
3 min-1
magazine type:
Kettenmagazin
Number of tools:
60
max. tool-Ø adjacent slots occupied:
125 mm
max. tool-Ø adjacent slots free:
250 mm
max. tool length :
500 mm
max. tool weight:
30 kg
max. tilting moment:
50 Nm

Description

Accessories
Partial enclosure of the work area, special enclosure at the table - movable all round
Operating mode 3
Chip conveyor between table group and Z-bed
Coolant system for internal & outside cooling 30l/20 bar, 50l/3 bar
Coolant cleaning by band filtration unit, coolant tank content 990l
Tool magazine 60 places, automatic change
support bearing
Torque monitoring of the working spindle
minimum lubrication instead of emulsion coolant
3D remote radio touch probe
