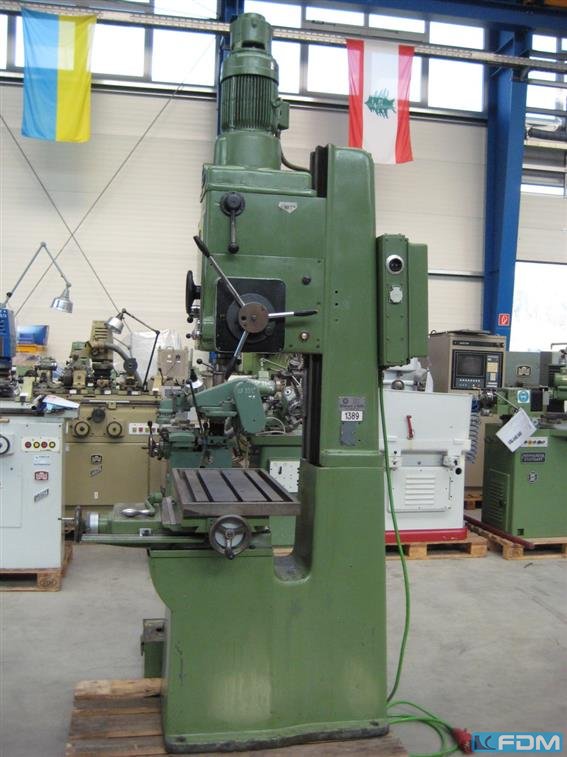

Drilling and Milling M/C

Details

bore capacity in steel (diameter):

5 - 30 mm

x-travel:

450 mm

y-travel:

380 mm

total power requirement:

1,4 / 2,2  kW

weight of the machine ca.:

1.100 kg

dimensions of the machine ca.:

1.000 x 1.400 x 2.900 mm

gear box:

85 - 2.000 U/min

spindle diameter:

72 mm

bore depth:

700 mm

throat:

300 mm

spindle taper MT:

3

T-slots:

3 x 16/25 mm

table-size:

700 x 300 mm

spindle turning speed range:

85/170/250/355/475/710/1000/2000 U/min

motor speeds::

705/1425

Year:

ca. 1975
