Boring mills / Machining Centers / Drilling machines - Radial Drilling Machine - EXPODIUM Z-30063 x 20

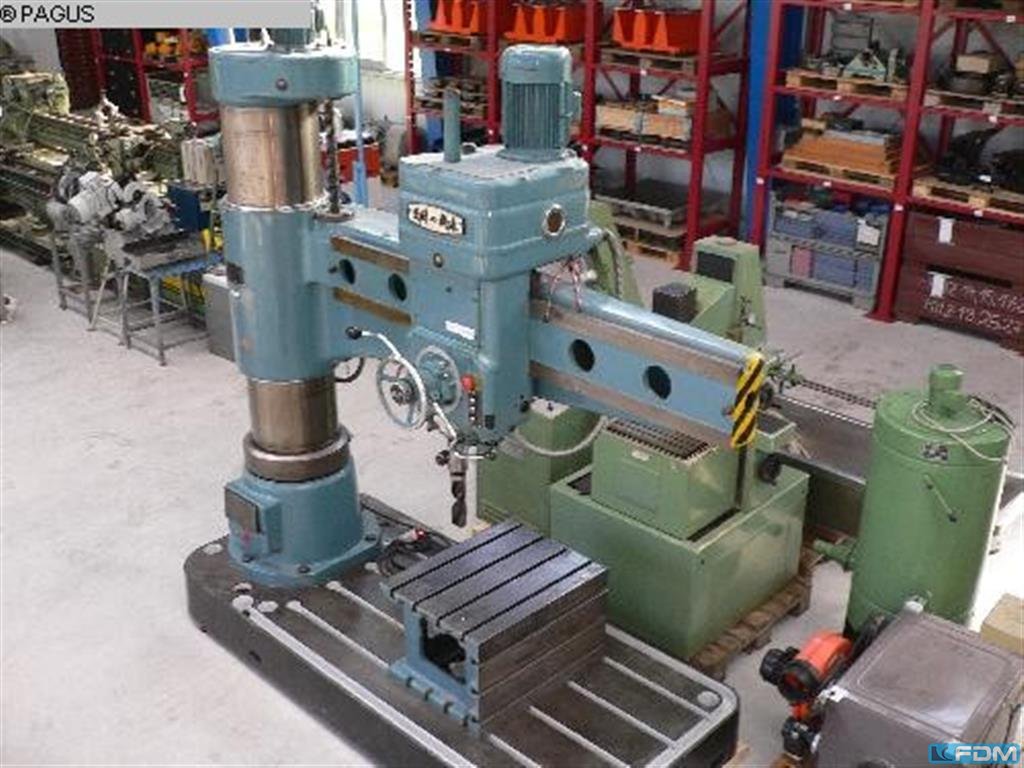

Radial Drilling Machine

EXPODIUM Z-30063 x 20

Stock number:
1106-BO138A
Year / Condition:
ca
Control unit:
conventional
Country of origin:
Taiwan
Freight basis:
ex store
Item location:
Pagus NL. Jena Germany
Delivery time:
immediately

Picture / documents / videos

Technical specs

Details

bore capacity in steel (diameter):
63 mm
arm length:
2000 mm
workpiece height max.:
135 mm
spindle stroke:
400 mm
reus:
16 Stufen
table-size:
630 x 800 mm
tool taper:
MK 5
speeds:
20 - 1600 U/min
spindle feeds::
0,04- 32 mm/U
work table::
800 x 630 x 550 mm
total power requirement:
5,5 kW
weight of the machine ca.:
6200 kg
dimensions of the machine ca.:
3100 x 1250 x 2500 mm
Year:
ca. 1990
