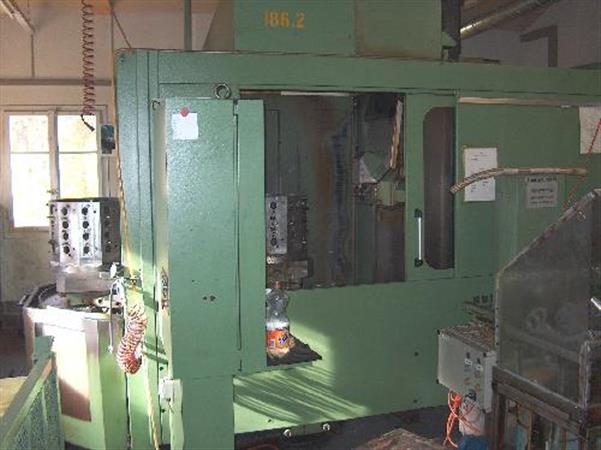

Machining Center - Horizontal

Details

x-travel:

630 mm

y-travel:

500 mm

z-travel:

560 mm

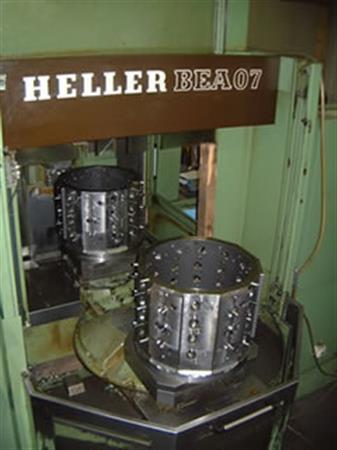

Number of pallets:

2

size of pallet:

400 x 500 mm

300 kg

1 °

feed range:

0 - 10000 mm/min

rapid travel x/y/z:

12000 mm/min

spindle motor:

15 kW

spindle turning speed range:

45 - 6000 U/min

max. torque on the spindle:

200 Nm

tool taper:

ISO 40

Tool magazine positions:

40 fach

workpiece diameter at full load:

75 mm

diameter of tools max.:

150 mm

workpiece length:

300 mm

weight of tools max.:

15 kg

tool changing time:

2 sec

6 sec

control:

uni-Pro nc-80C

weight of the machine ca.:

8000 kg
