Radial arm saw
ELU RAS 1253
- Stock number:
- 1087-1000009
- Year / Condition:
- 1993
- Control unit:
- conventional
- Country of origin:
- Italy
- Freight basis:
- EXW, free on truck unpacked
- Item location:
- Leipzig 1
- Delivery time:
- immediately
Picture / documents / videos
Technical specs
Details
- saw blade diameter:
- 250 mm
- saw blade drill hole:
- 30 mm
- Cutting length:
- 450 mm
- total power requirement:
- 2,55 kW
- weight of the machine approx.:
- 150 kg
- dimensions L x W x H:
- 0,85 x 0,86 x 1,4 m
Description

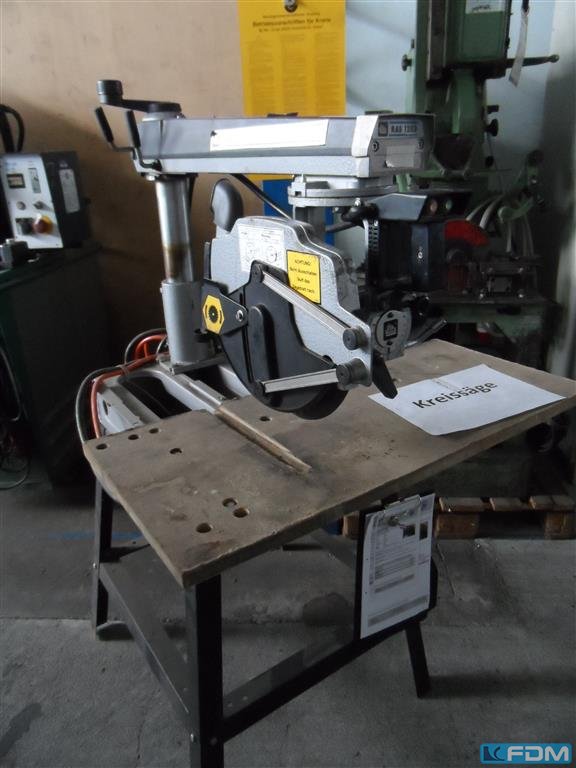

This circular saw is hand operated, equipped with a table support 400 x 860 x 22mm, relocatable, which is placed on a frame.
Uses: Wood, thermosetting plastics, plaster, chipboard and other similar materials.
Details of the swivel arm:

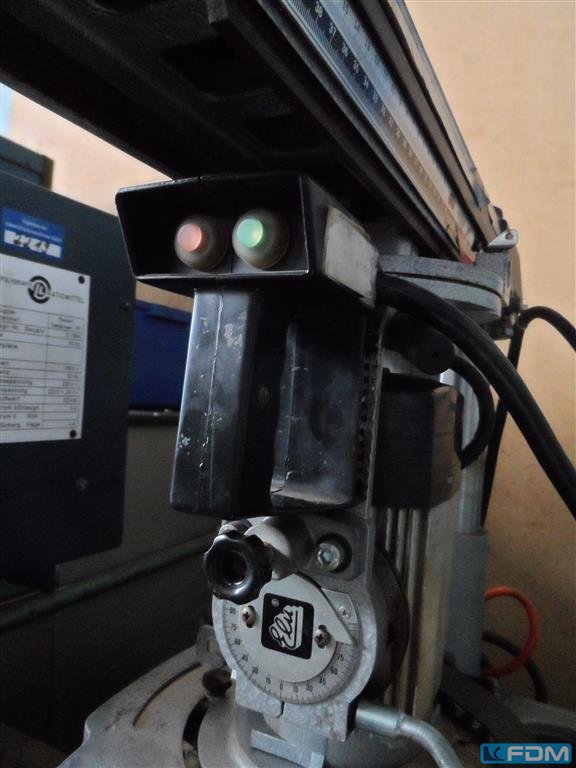

Length 800mm, max. projection 580mm, swiveling 45° right/left their indication via radial scale.
Sawhorse data:
Feed manually (handle), tiltable 90° left their indication via radial scale, motor 380V with 2,700 rpm, protection class IP44,
