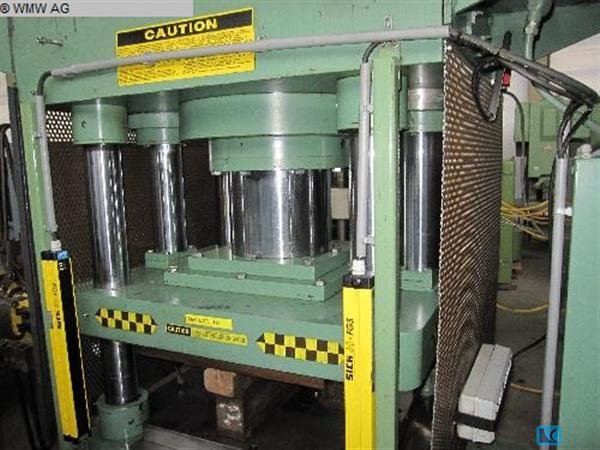

Four Column Press - Hydraulic
CLIFTON 505 D SPL APP
- Stock number:
- 1087-0700417
- Year / Condition:
- 1997 / Used
- Control unit:
- conventional
- Country of origin:
- USA
- Freight basis:
- EXW, free on truck unpacked
- Item location:
- Leipzig 2
- Delivery time:
- immediately
Picture / documents / videos
Technical specs
Details
- pressure:
- 250 t
- stroke:
- ca. 400 mm
- pass through width:
- 640 mm
- table above floor:
- 900 mm
- ram stroke speed:
- regulierbar/adjustable
- passage between the side columns:
- 470 mm
- table clamping surface LxW:
- 570x550 mm
- clamping area of ram:
- 570x550 mm
- total power requirement:
- 56 kW
- weight of the machine ca.:
- ca. 9,0 t
- dimension machine approx.LxWxH:
- 2,5x1,8x3,8 m
- transport dimensions LxWxH:
- 2,6x1,8x3,1 m
Description

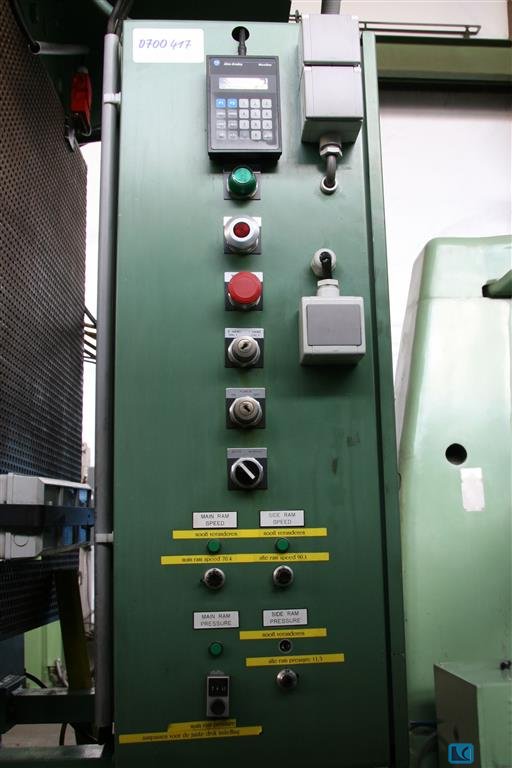

- control manual and via automatic via SPS Allen Bradley
- one hand and two hand control
- ram guidance column, zero backlash
- set up mode and automatic mode via SPS controlled
- light curtain type "Sick" and safety curtains installed
- no CE certification available
