Machining Center - Universal

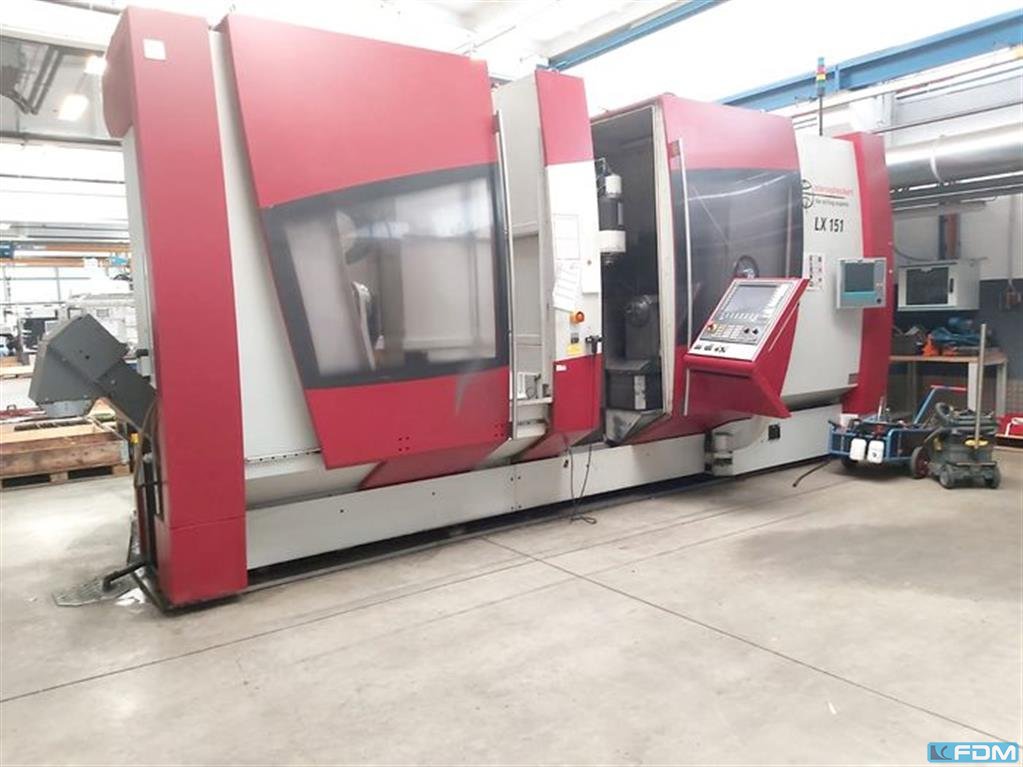

STARRAG HECKERT LX 151
- Stock number:
- 1032-03753
- Year / Condition:
- 2007
- Control unit:
- CNC (SIEMENS 840D)
- Country of origin:
- Freight basis:
- ex stock, free loaded
- Item location:
- Karlsbad Ittersbach stock 1
- Delivery time:
- immediately
Picture / documents / videos
Technical specs
Details
- x-travel:
- 1.100 mm
- y-travel:
- 400 mm
- z-travel:
- 400 mm
- max. workpiece length:
- 700 mm
- max. swing dia.:
- 400 mm
- spindle turning speed range:
- 18.000 1/min
- drive capacity - spindle motor:
- 35 / 28 kW
- control:
- SIEMENS 840D
- rapid traverse:
- 55 m/min
- Tool changer:
- 62 Pos.
- spindle taper ISO:
- HSK 63
- weight of the machine ca.:
- 17 t
Additional information
- dimensions for transport
Description
5-axis turbine blade machining center,
NC-rotary (torque motor) A-axis 360° (200rpm),
NC-milling head (torque motor) B-axis +90°/-90° (100rpm),
counterspindle,
direct measuring system in linear axis,
workpiece changer and set-up device, max. workpiece weight 80kg, changeover time 30s,
ICS with paper filter (950l ; 45bar ; 20l/min),
MQL,
oilskimmer,
laser,
3D-touchprobe,
flush gun,
chipconveyor,
oilmist-suction,
virtual blade machining,
approx. 50.000h "machine on", approx. 32.000h "spindle on", new spindle in 2020, currently approx 500h
