Rundschleifmaschine - Universal

Details

Schleifdurchmesser:

500 mm

Schleiflänge:

1600 mm

Spitzenhöhe:

251 mm

Beschreibung

KARSTENS cylindrical grinder K28

-Make: EMAG Karstens
-Typ: K 28 - 1600
-Age: 1998
-Serial: 98 017 16 28 032

-Swing over bed way: 502
-Centre height: 251
-Max. grinding length: 1.600
-Max. Load ca.: 250

-Min. Grinding Ø: 5
-Max. Grinding Ø: 500
-Max. Grinding length crush: 100
-Max. grinding depth: 120

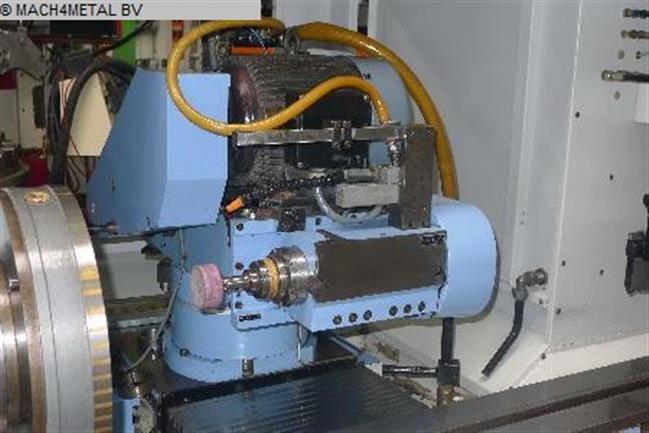

Grinding spindle
-Grinding bore min. / max. : 3 / 400
-Grinding spindle Cone : 1:5
-Angle degrease : 0 - 180°
-Feeds : 0,01/6.000 Rpm

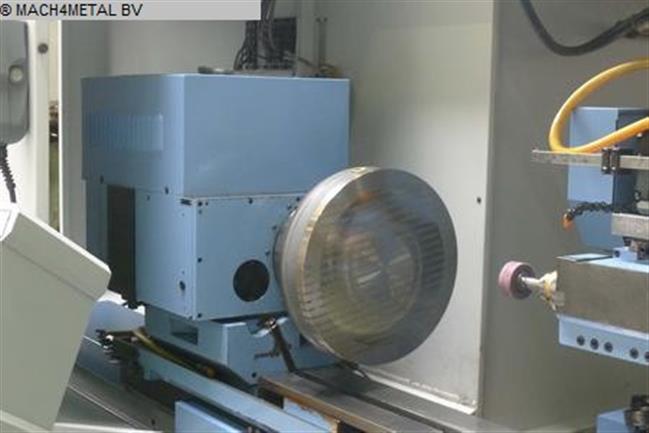

Workpiece tool spindle
-Taper: Mk 6
-Spindle hole: Ø 52
-Angle degrease : 45°
-Feeds: 0,01 /10.000 Rpm

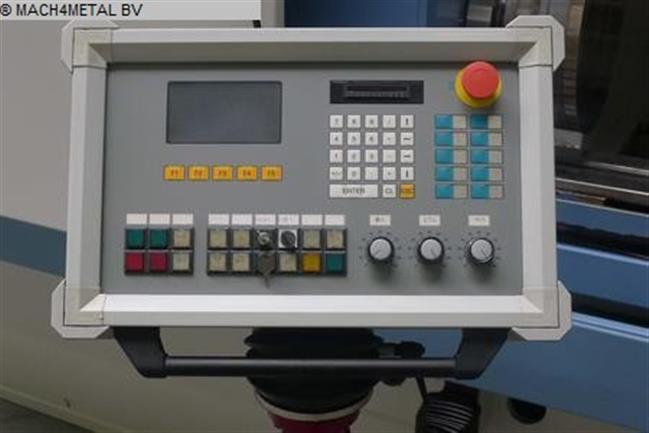

-Incl. CNC 20 Teach in CONTROLL
-Incl. Marpos E20G gap, crash, dressing &
Position control for grinding wheel
-Incl. crusch grinding
-Incl. dressing
-Incl. coolant system / filtration
-Incl. flanches + incl. stone's
-New Euro 300.000
